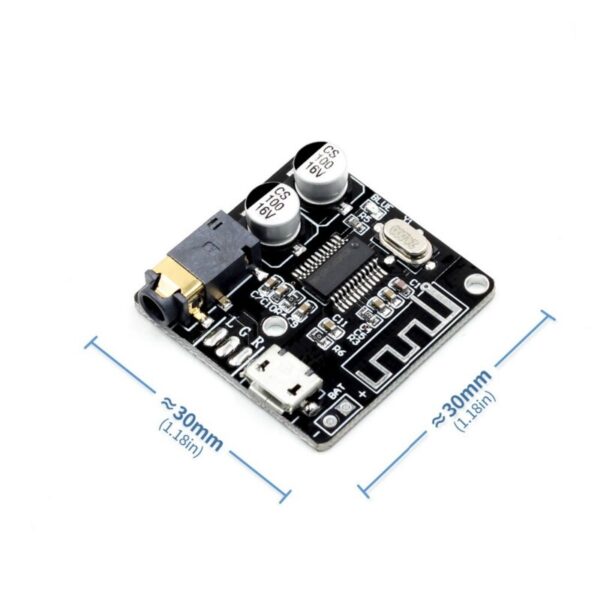

VHM-314 Bluetooth 5.0 Stereo Audio Receiver Module
VHM-314 Bluetooth 5.0 Stereo Audio Receiver Module Original price was: 55,00 EGP.Current price is: 45,00 EGP.
Back to products
HC-SR04 Ultrasonic Distance Sensor Module
HC-SR04 Ultrasonic Distance Sensor Module Original price was: 50,00 EGP.Current price is: 40,00 EGP.
-18%

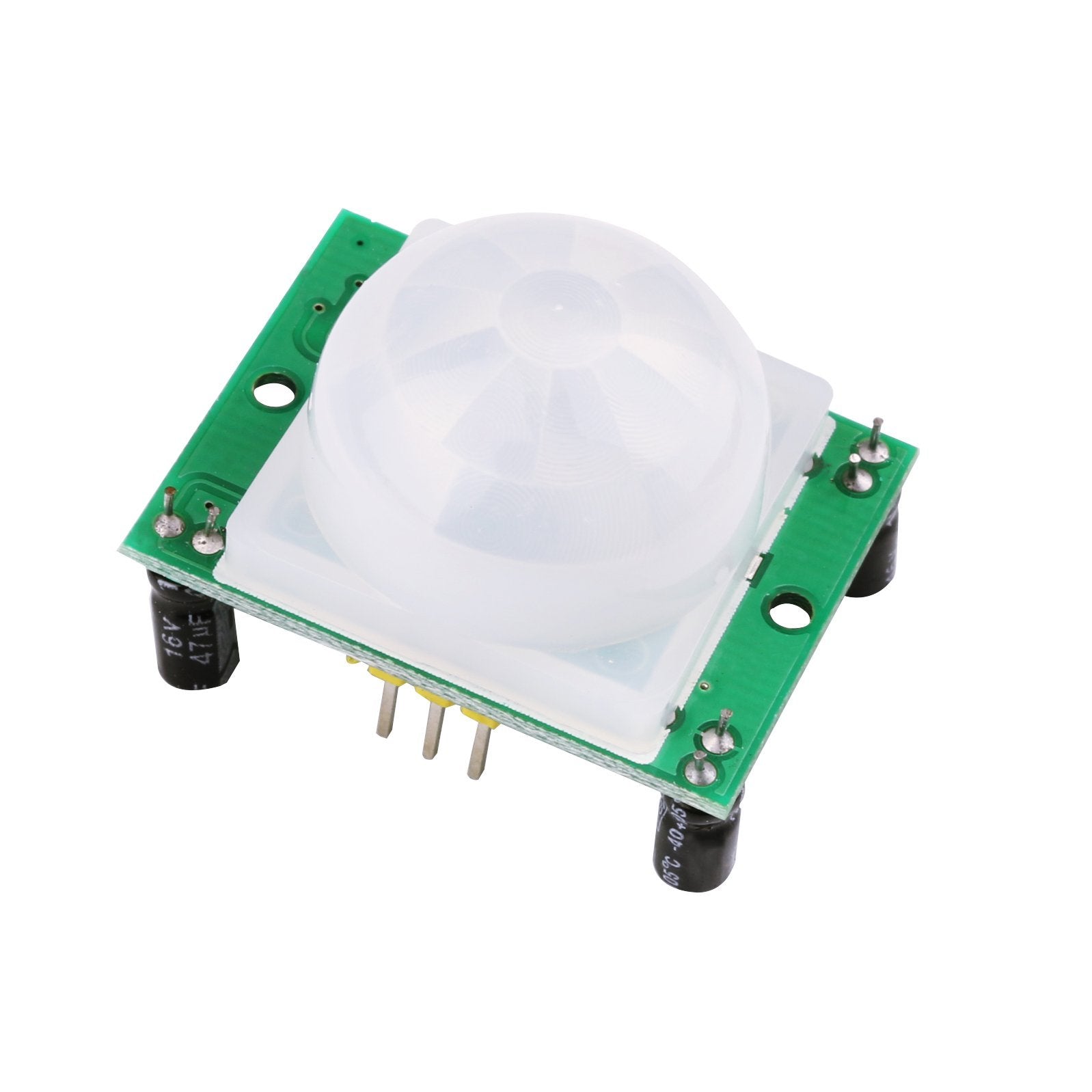

hc sr501 pir ir passive infrared motion detector sensor module for arduino diy 970773
s l1200 4
Click to enlarge

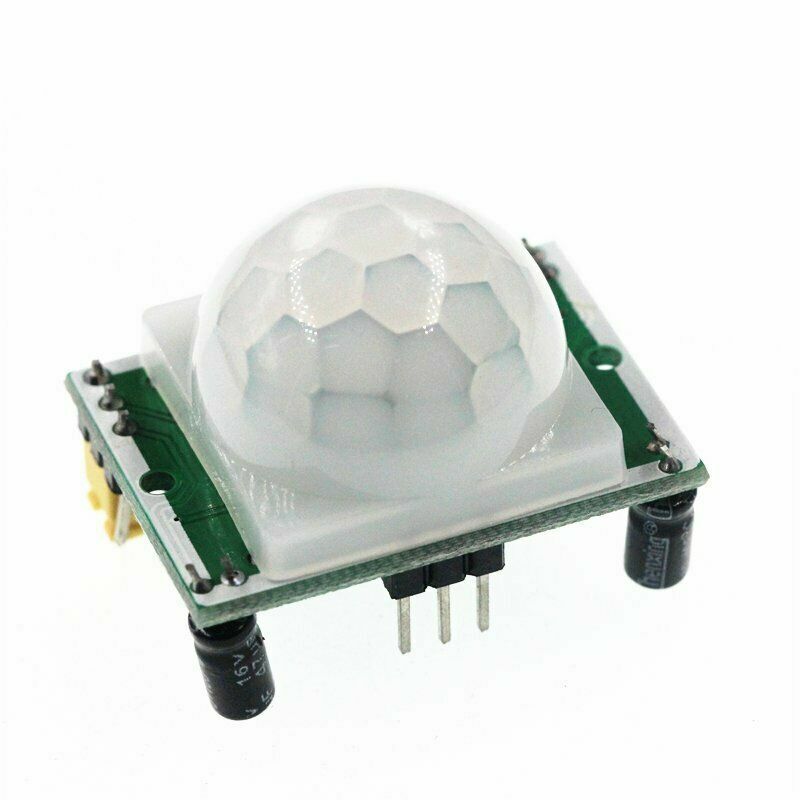

HC-SR501 Adjustable PIR Motion Sensor Module

0 reviews
SKU: 4089826

Original price was: 110,00 EGP.Current price is: 90,00 EGP.

Compare
Add to wishlist
4 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • 14-Day returns
More details

Payment Methods:

The HC-SR501 Adjustable PIR Motion Sensor Module is a passive infrared detector that senses the body heat of people and animals moving within its field of view. Built around the BISS0001 control IC and a pyroelectric sensor beneath a Fresnel lens dome, it outputs a simple digital signal whenever motion is detected.

Key features:

  • Pyroelectric Detection: Uses a Fresnel lens dome to focus infrared changes onto the sensor for reliable motion sensing.
  • Adjustable Sensitivity: An onboard potentiometer sets the detection distance up to roughly 7 meters.
  • Adjustable Delay Time: A second potentiometer sets how long the output stays high after motion stops, from about 5 seconds to 5 minutes.
  • Trigger Mode Jumper: Selectable single-trigger or repeatable-trigger operation via an onboard jumper.
  • Wide Input Voltage: Operates from 4.5V to 20V DC, with a 3.3V logic-level digital output.
  • Low Power Consumption: Draws under 65 microamps in standby, suitable for battery-powered projects.

It is widely used in automatic lighting, security alarms, and occupancy-sensing projects with Arduino, ESP8266, and Raspberry Pi.

Add a review
You must be logged in to post a review Log In
0.0
Based on 0 reviews
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
0 of 0 reviews

Sorry, no reviews match your current selections

Specification

Technical Specification

Supply Voltage

4.5V to 20V
Output Type

Digital (TTL)
Detection Range

Up to 7m (Adjustable)
Detection Angle

<140°
Delay Time

5s to 300s (Adjustable)
Operating Current

<65µA (Standby)
