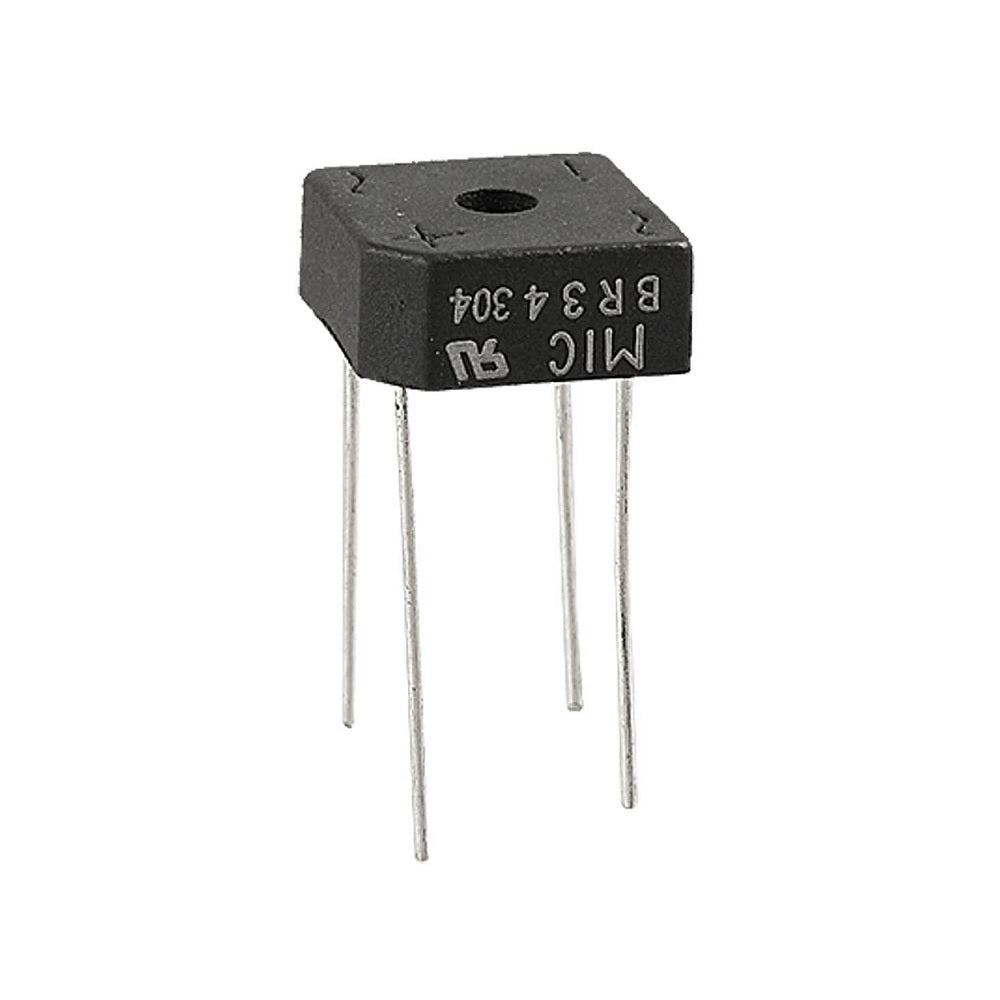

The BR34 Bridge Rectifier is a single-phase silicon rectifier designed to convert alternating current (AC) into direct current (DC) through full-wave rectification. With a maximum repetitive peak reverse voltage of 400V and an average rectified output current rating of 3A, it is suitable for a variety of power conversion applications.

Its compact BR-3 package features a molded plastic body and a mounting hole for secure installation. The through-hole wire leads allow convenient integration into electronic circuits, power supplies, and PCB assemblies.

Specifications:
– Part Number: BR34
– Component Type: Single-Phase Bridge Rectifier
– Maximum Repetitive Peak Reverse Voltage: 400V
– Average Rectified Output Current: 3A
– Maximum RMS Reverse Voltage: 280V
– Maximum Forward Voltage Drop: Approximately 1V per diode at 1.5A
– Peak Surge Current: 50A
– Number of Terminals: 4
– Package: BR-3
– Mounting Type: Through Hole
– Operating Temperature: Manufacturer-dependent; check the specific datasheet

Applications:
– AC-to-DC power supplies
– Power adapters and chargers
– Electronic equipment
– DC power conversion
– Industrial control circuits
