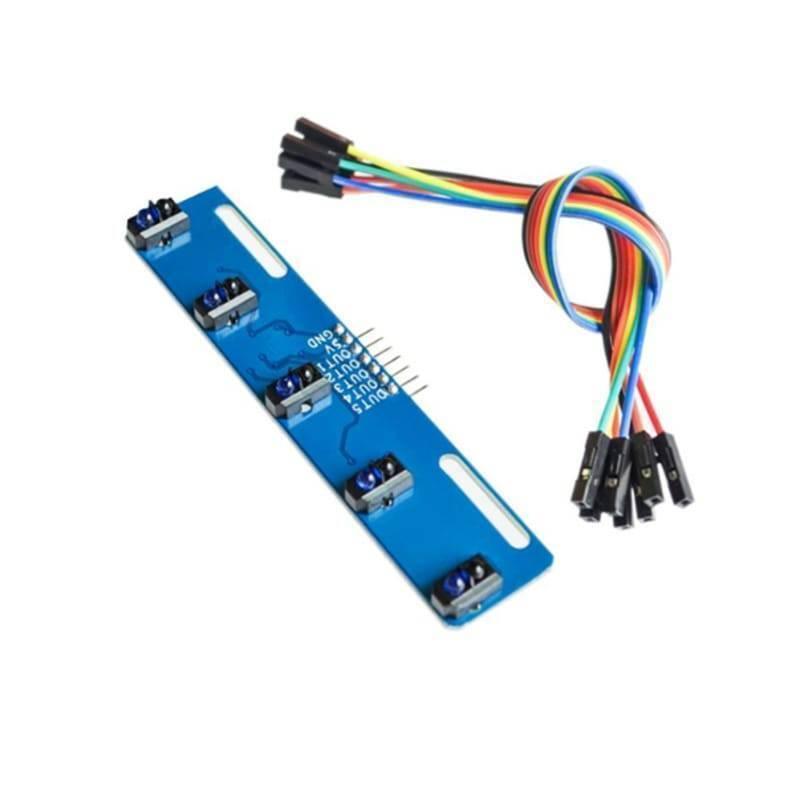

5 channel tcrt5000 ir array tracking sensor module 1
Click to enlarge

TCRT5000 5-Channel Infrared Line Tracking Sensor Module

0 reviews
SKU: 7920350

Original price was: 150,00 EGP.Current price is: 120,00 EGP.

Compare
Add to wishlist
7 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • 14-Day returns
More details

Payment Methods:

The TCRT5000 5-Channel Infrared Line Tracking Sensor Module is a robotics sensor bar built around five independent TCRT5000 reflective infrared pairs, designed to detect the contrast between a black line and a light-colored surface. It gives line-following robots and smart cars fast, reliable path-tracking feedback.

Key features:

  • Five TCRT5000 Sensors: Five infrared emitter-receiver pairs mounted in a row give wide, accurate coverage of the tracked line.
  • Digital Outputs: Each channel produces its own digital high/low signal, so all five can be read directly by a microcontroller.
  • Per-Channel Sensitivity: Individual onboard potentiometers let you tune each sensor to the surface and lighting conditions.
  • Close-Range Detection: Reliable detection distance of a few millimeters up to about 15mm above the surface.
  • Mounting Slots: Long mounting holes make it easy to bolt the bar to the underside of a robot chassis.
  • Ready-to-Wire Header: A labeled pin header with jumper wires simplifies connection to Arduino and similar boards.

Add a review
You must be logged in to post a review Log In
0.0
Based on 0 reviews
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
0 of 0 reviews

Sorry, no reviews match your current selections

Specification

Technical Specification

Supply Voltage

3.3V to 5V
Output Type

5-Channel Digital
Sensor Element

TCRT5000 Infrared Reflective Pair
Detection Range

2mm to 15mm
Sensitivity Adjustment

Per-channel potentiometer
Dimensions

96mm x 20mm
