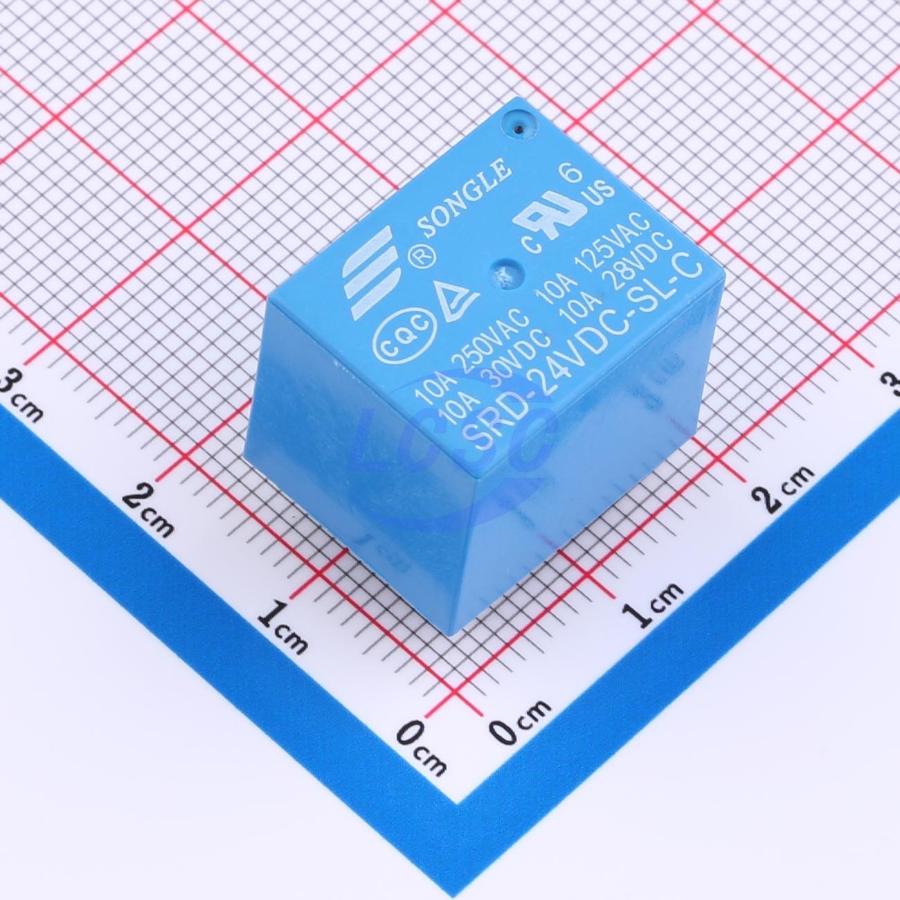

20250911 Songle Relay SRD 24VDC SL C C15840 front
Click to enlarge

Songle SRD-24VDC-SL-C 5-Pin SPDT Power Relay (24V, 10A)

0 reviews
SKU: 9434212

10,00 EGP

Compare
Add to wishlist
7 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • 14-Day returns
More details

Payment Methods:

The Songle SRD-24VDC-SL-C Power Relay is a compact 5-pin SPDT relay that lets a 24V control signal switch a much larger AC or DC load. Its sealed blue plastic housing and through-hole pins make it a popular choice for automation, appliance control and relay modules driven by Arduino or other microcontrollers.

Key features:

  • Coil Voltage: Rated for a 24V DC coil, drawing about 0.36W to energize the internal electromagnet.
  • High Switching Capacity: Rated up to 10A at 250VAC / 125VAC and 10A at 28VDC, suitable for motors, lamps and small appliances.
  • SPDT Contact Form: One set of changeover (Form C) contacts provides both normally-open and normally-closed switching.
  • Compact 5-Pin Package: Standard through-hole footprint fits directly onto PCBs and common relay driver modules.
  • Safety Certified: UL and CUL recognized construction for reliable, long-term operation.

Add a review
You must be logged in to post a review Log In
0.0
Based on 0 reviews
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
0 of 0 reviews

Sorry, no reviews match your current selections

Specification

Technical Specification

Coil Voltage

24V
Contact Rating

10A/250VAC, 10A/125VAC, 10A/28VDC
Contact Form

SPDT (1 Form C)
Pin Count

5
Dimensions

19mm x 15.5mm x 15.8mm
Weight

10g

Display

Coil Voltage

24V
Contact Rating

10A/250VAC, 10A/125VAC, 10A/28VDC
Contact Form

SPDT (1 Form C)
Pin Count

5
Dimensions

19mm x 15.5mm x 15.8mm
Weight

10g

RAM

Coil Voltage

24V
Contact Rating

10A/250VAC, 10A/125VAC, 10A/28VDC
Contact Form

SPDT (1 Form C)
Pin Count

5
Dimensions

19mm x 15.5mm x 15.8mm
Weight

10g

Storage

Coil Voltage

24V
Contact Rating

10A/250VAC, 10A/125VAC, 10A/28VDC
Contact Form

SPDT (1 Form C)
Pin Count

5
Dimensions

19mm x 15.5mm x 15.8mm
Weight

10g

Video Card

Coil Voltage

24V
Contact Rating

10A/250VAC, 10A/125VAC, 10A/28VDC
Contact Form

SPDT (1 Form C)
Pin Count

5
Dimensions

19mm x 15.5mm x 15.8mm
Weight

10g

Connectivity

Coil Voltage

24V
Contact Rating

10A/250VAC, 10A/125VAC, 10A/28VDC
Contact Form

SPDT (1 Form C)
Pin Count

5
Dimensions

19mm x 15.5mm x 15.8mm
Weight

10g

Features

Coil Voltage

24V
Contact Rating

10A/250VAC, 10A/125VAC, 10A/28VDC
Contact Form

SPDT (1 Form C)
Pin Count

5
Dimensions

19mm x 15.5mm x 15.8mm
Weight

10g

Battery

Coil Voltage

24V
Contact Rating

10A/250VAC, 10A/125VAC, 10A/28VDC
Contact Form

SPDT (1 Form C)
Pin Count

5
Dimensions

19mm x 15.5mm x 15.8mm
Weight

10g

General

Coil Voltage

24V
Contact Rating

10A/250VAC, 10A/125VAC, 10A/28VDC
Contact Form

SPDT (1 Form C)
Pin Count

5
Dimensions

19mm x 15.5mm x 15.8mm
Weight

10g
