RT809F Universal Serial ISP Programmer Kit

0 reviews
SKU: 295405

Original price was: 3.970,00 EGP.Current price is: 3.250,00 EGP.

Compare
Add to wishlist
4 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • 14-Day returns
More details

Payment Methods:

The RT809F Universal Serial ISP Programmer Kit is a high-speed programming tool built around the RT809F chipset, designed to read, write, and verify SPI Flash, EEPROM, and NAND Flash chips used in laptop BIOS, LCD panels, and car ECUs. It ships as a complete kit with test clips, SOP adapters, and cables for both in-circuit and socket programming.

Key Features:

  • USB Interface: High-speed USB 2.0 connection for fast read, write, and verify cycles.
  • Wide Chip Support: Programs SPI Flash, EEPROM, and NAND Flash memory used in motherboards, LCD panels, and ECUs.
  • In-Circuit Programming: VGA ISP and HDMI ISP ports allow programming chips without desoldering.
  • SOP Test Clip: Includes an 8-pin SOP clip for quick in-circuit chip access.
  • Adjustable Voltage: Supports a 1.8V to 5V programming voltage range for a wide family of chips.
  • PC Software: Works with free RT809F Windows software for chip identification and programming.

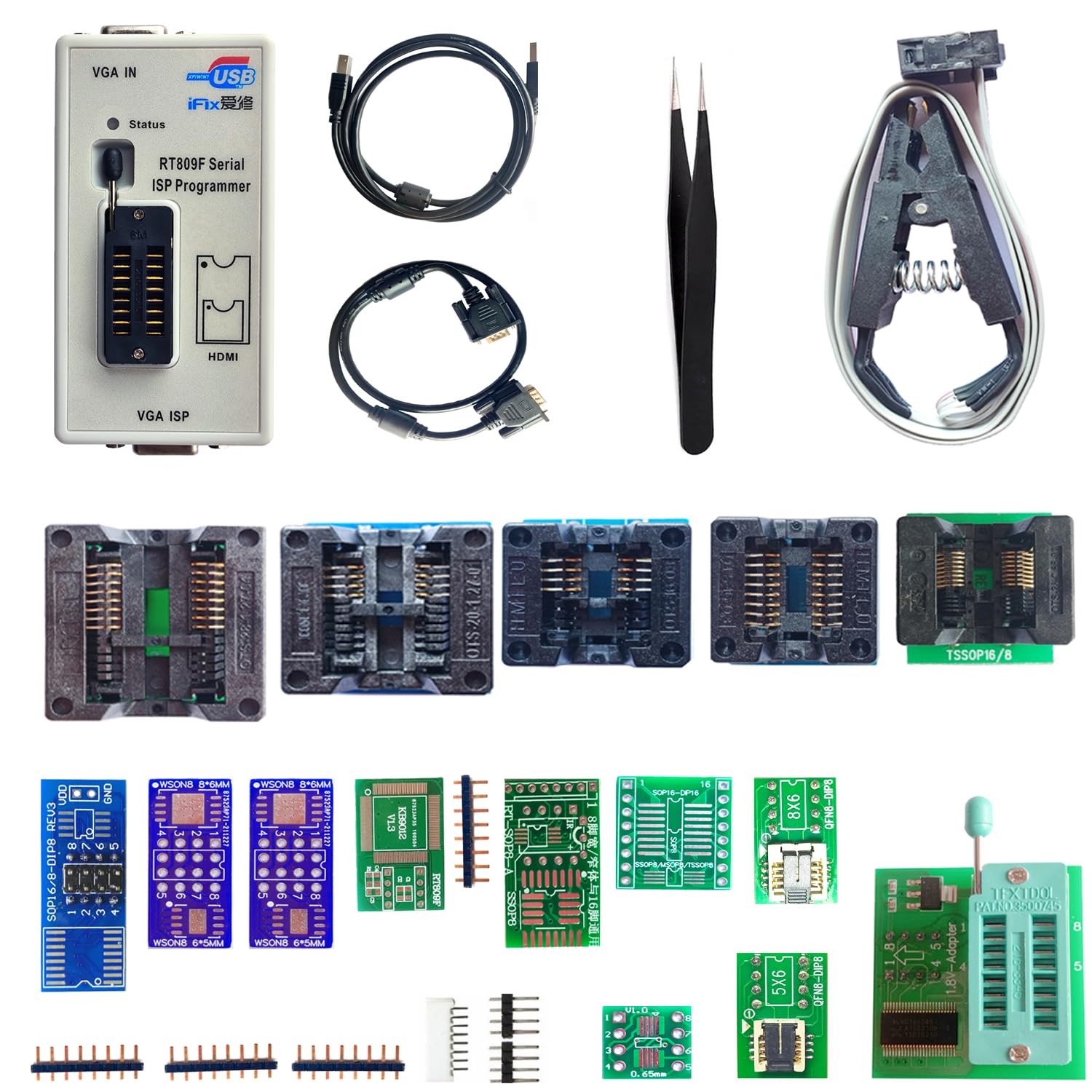

Package Includes:

  • 1 x RT809F Programmer Unit
  • 1 x SOP8 Test Clip
  • Multiple SOP/TSSOP Socket Adapters
  • 1 x USB Cable
  • 1 x VGA/HDMI ISP Cable

Add a review
You must be logged in to post a review Log In
0.0
Based on 0 reviews
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
0 of 0 reviews

Sorry, no reviews match your current selections

Specification

Technical Specification

Interface

USB 2.0 (High Speed)
Supported Chips

SPI Flash, EEPROM, NAND Flash
Programming Voltage

1.8V to 5V adjustable
In-Circuit Ports

VGA ISP, HDMI ISP
Included Sockets

SOP8 clip, SOP/TSSOP ZIF adapters
Software

RT809F Windows programming software
