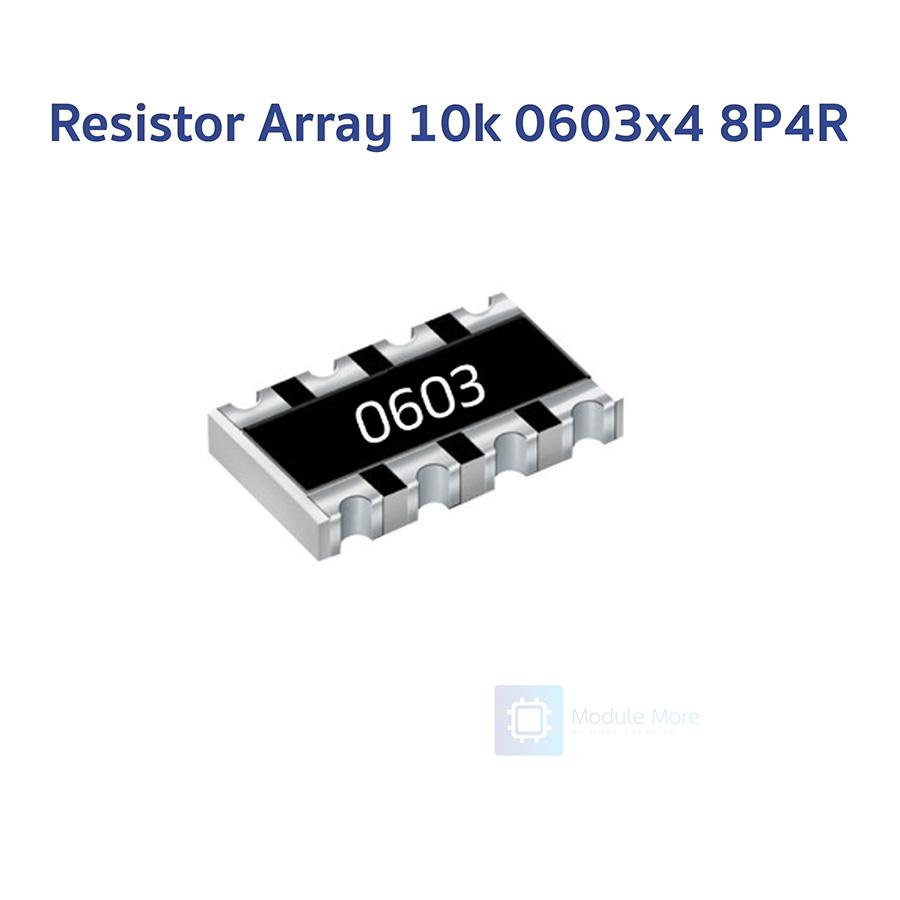

Resistor Network Array SMD ±5% 10kΩ 62.5mW ±200ppm/℃ 0603×4

The Resistor Network Array SMD 10kΩ ±5% 62.5mW 0603×4 is a compact surface-mount component that integrates four independent 10kΩ resistors into a single package. It helps reduce component count and PCB space while providing reliable resistance for electronic circuit designs.

With a rated power of 62.5mW per resistor and a temperature coefficient of ±200ppm/°C, this resistor array is suitable for signal conditioning, voltage divider circuits, digital electronics, and other low-power applications. Its 8-pin surface-mount package supports automated PCB assembly.

Specifications:
– Resistance: 10kΩ per resistor
– Number of Resistors: 4
– Number of Pins: 8
– Tolerance: ±5%
– Power Rating: 62.5mW per resistor
– Temperature Coefficient: ±200ppm/°C
– Package: 0603×4
– Mounting Type: Surface Mount (SMD)
– Circuit Configuration: Isolated resistors
– Manufacturer: UNI-ROYAL
– Part Number: 4D03WGJ0103T5E

Applications:
– Signal conditioning
– Voltage divider circuits
– Digital electronics
– Compact PCB designs
– General-purpose electronic circuits
