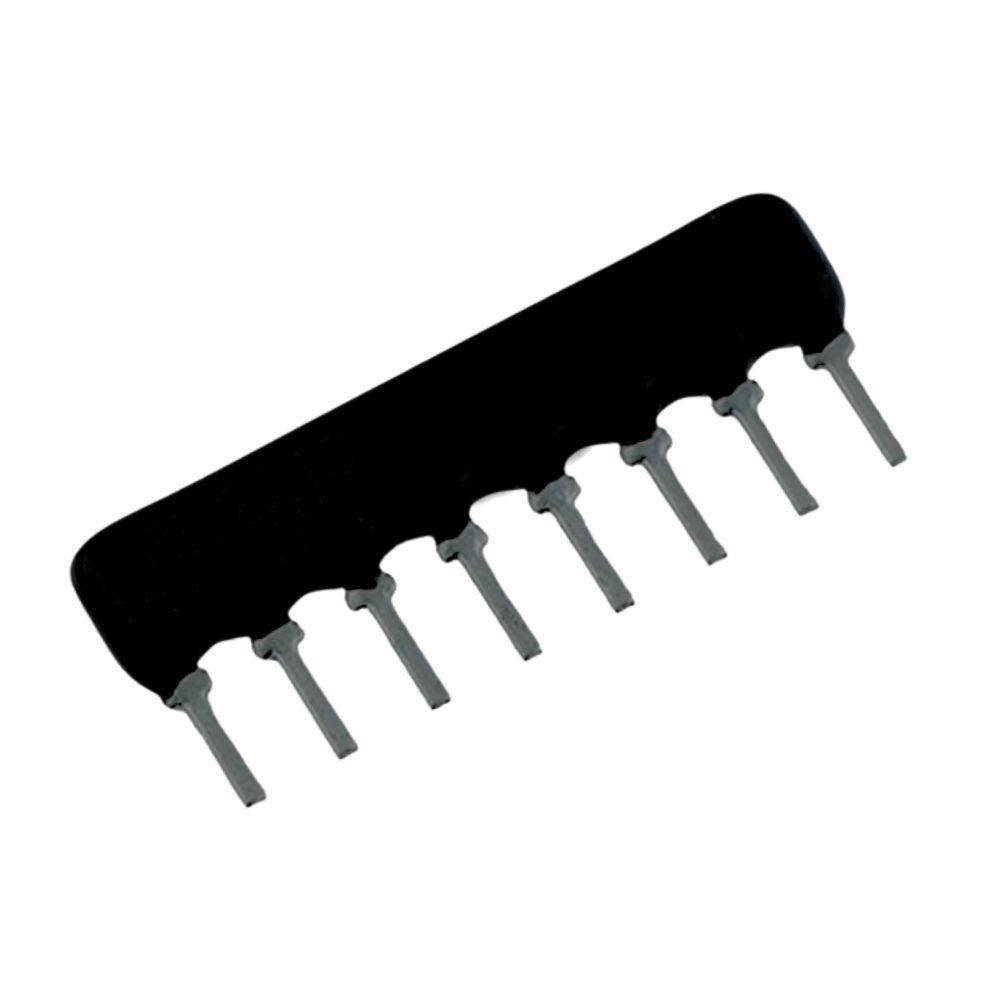

Network Resistor 33KΩ 9 Pin

The Network Resistor 33KΩ 9 Pin is a compact electronic component that integrates eight 33KΩ resistors into a single package with a shared common terminal. Its Single In-Line Package (SIP) design helps reduce component count and save valuable space on printed circuit boards (PCBs).

Designed for through-hole mounting, this resistor network is suitable for pull-up circuits, digital logic interfaces, signal conditioning, and other electronic applications requiring multiple resistors connected to a common line.

Specifications:
– Resistance: 33KΩ per resistor
– Number of Pins: 9
– Number of Resistors: 8
– Circuit Configuration: Bussed (common terminal)
– Tolerance: ±2%
– Power Rating: 0.2W per resistor
– Package Type: SIP (Single In-Line Package)
– Mounting Type: Through Hole
– Operating Temperature: -55°C to +125°C

Applications:
– Pull-up resistor circuits
– Digital logic and microcontroller interfaces
– Signal conditioning
– PCB assembly and prototyping
