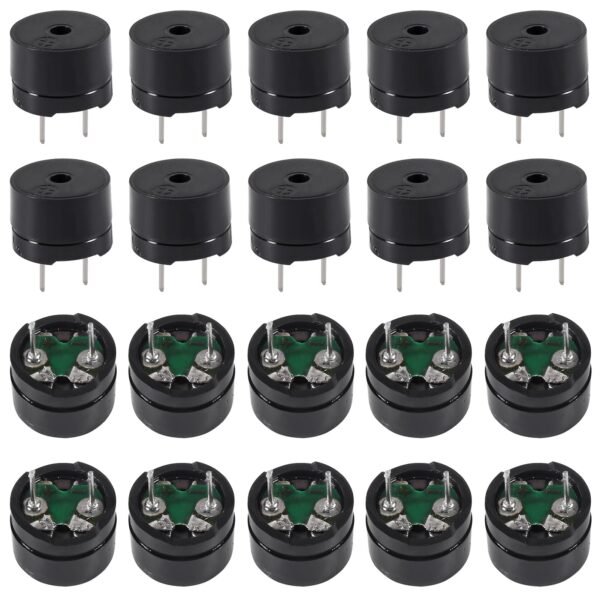

Mini Electromagnetic Alarm Buzzer 5V (Black)
Mini Electromagnetic Alarm Buzzer 5V (Black) 9,00 EGP
61V0HFQWjgL
Click to enlarge

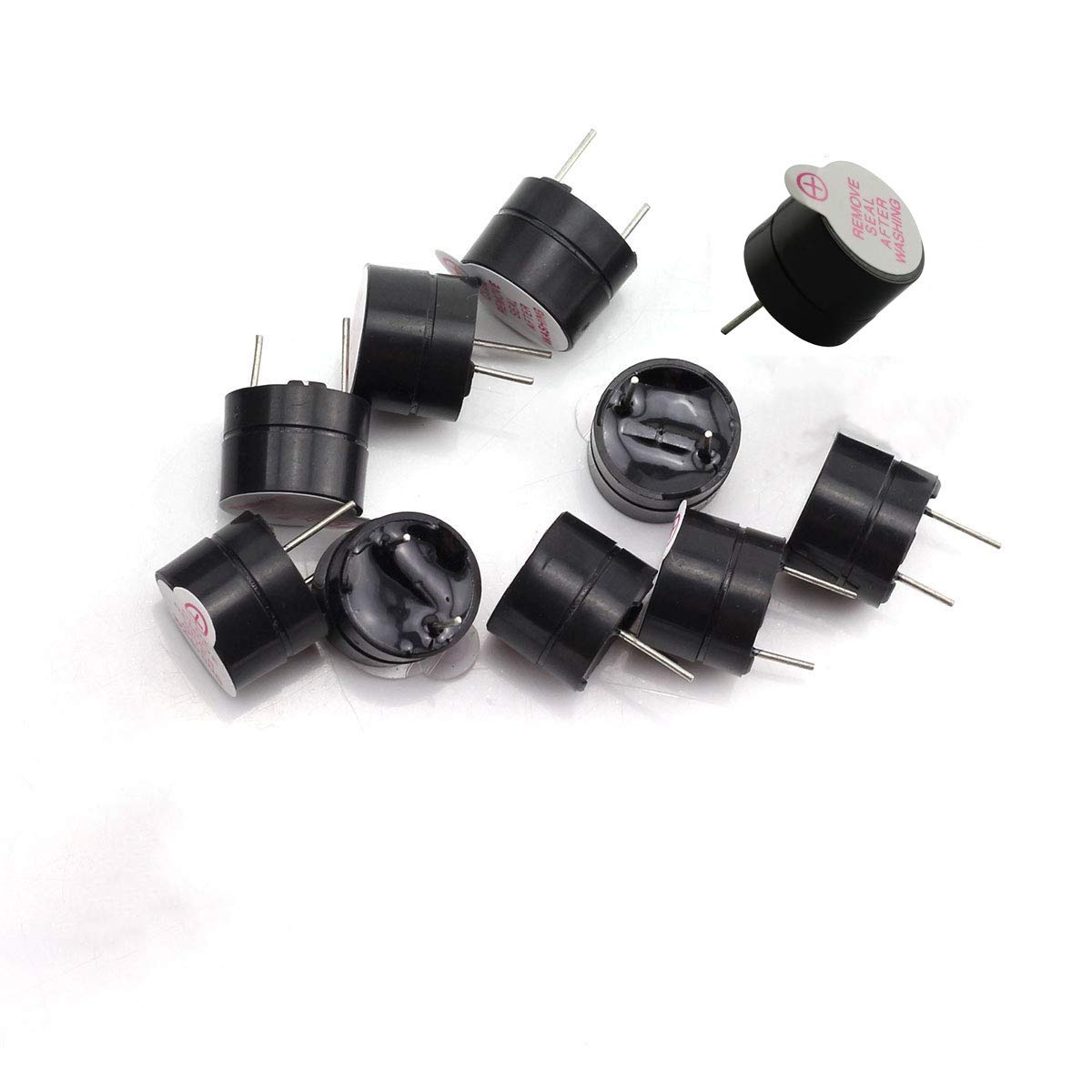

Mini Electromagnetic Alarm Buzzer 3V (Black)

0 reviews
SKU: 8584349

9,00 EGP

Compare
Add to wishlist
9 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • 14-Day returns
More details

Payment Methods:

The Mini Electromagnetic Alarm Buzzer 3V (Black) is a compact two-pin buzzer that produces a continuous audible tone as soon as power is applied, making it ideal for alerts, timers, and simple feedback circuits. Its small cylindrical housing solders directly onto a PCB or plugs straight into a breadboard for quick prototyping.

Key features:

  • Rated Voltage: Designed to operate at 3V DC for low-voltage microcontroller and battery-powered projects.
  • Continuous Tone: Produces a steady alert sound the moment power is applied, with no driver circuit required.
  • Compact Housing: Small black cylindrical body with two through-hole pins for easy mounting.
  • Low Current Draw: Draws only a few milliamps, safe to switch from most microcontroller pins via a transistor driver.
  • Wide Application: Suitable for alarms, reminders, game feedback, and general notification circuits.

It is a low-cost way to add clear audible feedback to any Arduino, ESP32, or general-purpose electronics project.

Add a review
You must be logged in to post a review Log In
0.0
Based on 0 reviews
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
0 of 0 reviews

Sorry, no reviews match your current selections

Specification

Technical Specification

Rated Voltage

3V
Sound Output

85dB (at 10cm)
Operating Current

Up to 25mA
Resonant Frequency

2300Hz ±500Hz
Pin Type

2-Pin Through-Hole
Dimensions

12mm x 9.5mm

Display

Rated Voltage

3V
Sound Output

85dB (at 10cm)
Operating Current

Up to 25mA
Resonant Frequency

2300Hz ±500Hz
Pin Type

2-Pin Through-Hole
Dimensions

12mm x 9.5mm

RAM

Rated Voltage

3V
Sound Output

85dB (at 10cm)
Operating Current

Up to 25mA
Resonant Frequency

2300Hz ±500Hz
Pin Type

2-Pin Through-Hole
Dimensions

12mm x 9.5mm

Storage

Rated Voltage

3V
Sound Output

85dB (at 10cm)
Operating Current

Up to 25mA
Resonant Frequency

2300Hz ±500Hz
Pin Type

2-Pin Through-Hole
Dimensions

12mm x 9.5mm

Video Card

Rated Voltage

3V
Sound Output

85dB (at 10cm)
Operating Current

Up to 25mA
Resonant Frequency

2300Hz ±500Hz
Pin Type

2-Pin Through-Hole
Dimensions

12mm x 9.5mm

Connectivity

Rated Voltage

3V
Sound Output

85dB (at 10cm)
Operating Current

Up to 25mA
Resonant Frequency

2300Hz ±500Hz
Pin Type

2-Pin Through-Hole
Dimensions

12mm x 9.5mm

Features

Rated Voltage

3V
Sound Output

85dB (at 10cm)
Operating Current

Up to 25mA
Resonant Frequency

2300Hz ±500Hz
Pin Type

2-Pin Through-Hole
Dimensions

12mm x 9.5mm

Battery

Rated Voltage

3V
Sound Output

85dB (at 10cm)
Operating Current

Up to 25mA
Resonant Frequency

2300Hz ±500Hz
Pin Type

2-Pin Through-Hole
Dimensions

12mm x 9.5mm

General

Rated Voltage

3V
Sound Output

85dB (at 10cm)
Operating Current

Up to 25mA
Resonant Frequency

2300Hz ±500Hz
Pin Type

2-Pin Through-Hole
Dimensions

12mm x 9.5mm
