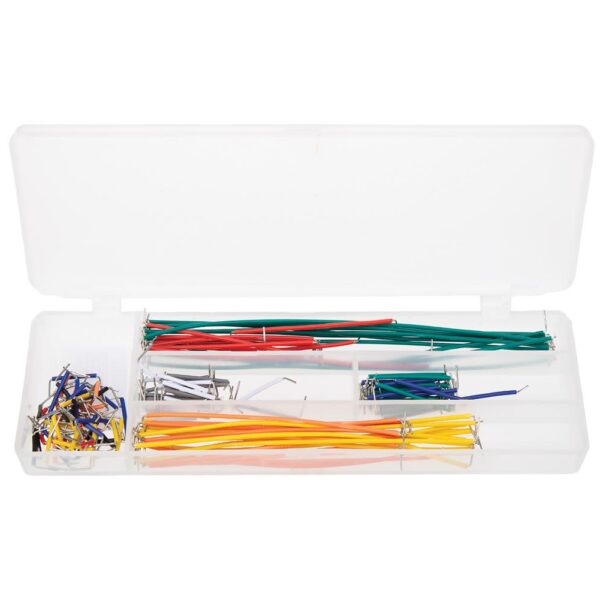

140-Piece Breadboard Jumper Wire Kit (Assorted Lengths)
140-Piece Breadboard Jumper Wire Kit (Assorted Lengths) Original price was: 70,00 EGP.Current price is: 55,00 EGP.
-10%
micro sd card reader module 1080x1080 1
micro sd card reader module 1 1080x1080 1
Click to enlarge

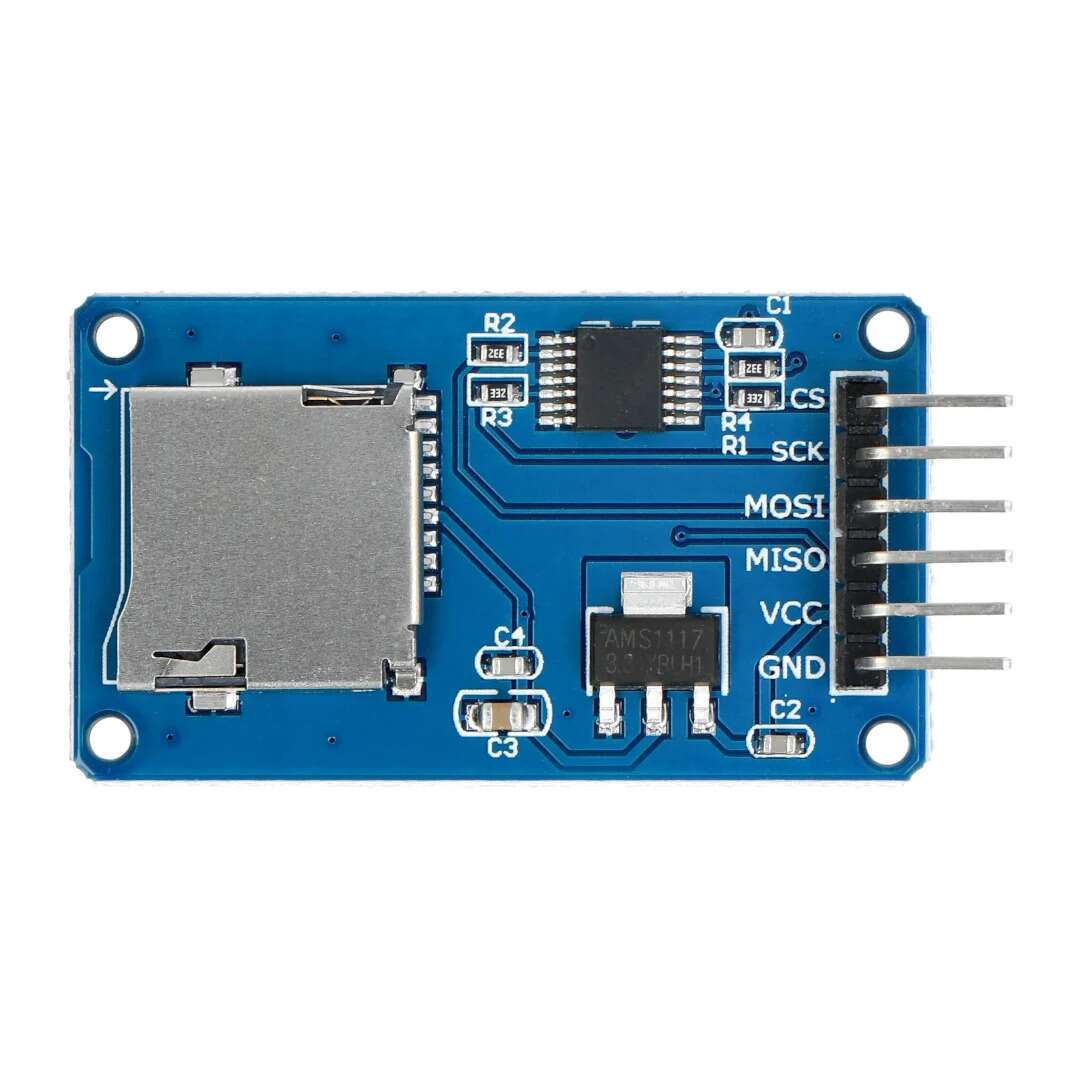

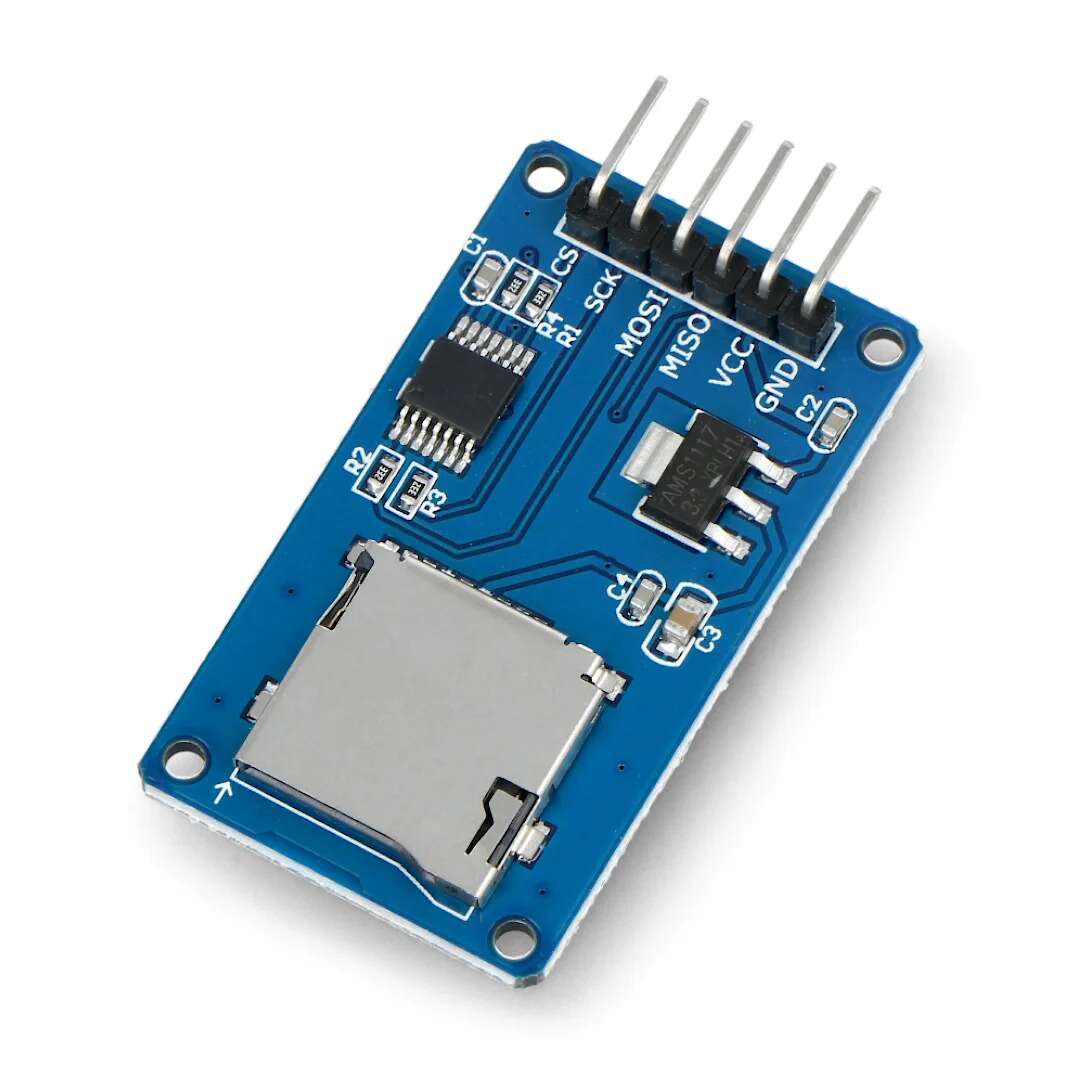

Micro SD Card Reader Module (SPI)

0 reviews
SKU: 8835496

Original price was: 50,00 EGP.Current price is: 45,00 EGP.

Compare
Add to wishlist
8 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • 14-Day returns
More details

Payment Methods:

The Micro SD Card Reader Module is an SPI breakout board that lets Arduino, ESP8266, and other microcontrollers read and write files on a standard microSD card. An onboard 3.3V regulator and built-in level shifting let it connect directly to 5V logic boards without extra components.

Key features:

  • SPI Interface: Communicates over standard SPI (CS, SCK, MOSI, MISO), compatible with the popular SD library.
  • Onboard Voltage Regulation: An AMS1117 LDO regulator steps the supply down to the 3.3V a microSD card needs.
  • Logic Level Shifting: Built-in level shifting allows safe operation with both 3.3V and 5V microcontrollers.
  • Spring-Loaded Card Slot: A push-push microSD socket holds the card securely during use.
  • Compact Breakout: A small 6-pin header footprint fits easily on a breadboard or perfboard.

It is commonly used for data logging, MP3 playback, and file storage in Arduino and Raspberry Pi projects.

Add a review
You must be logged in to post a review Log In
0.0
Based on 0 reviews
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
0 of 0 reviews

Sorry, no reviews match your current selections

Specification

Technical Specification

Supply Voltage

4.5V to 5.5V
Interface

SPI
Onboard Regulator

AMS1117 (3.3V)
Logic Level

3.3V / 5V
Pin Count

6-Pin (CS, SCK, MOSI, MISO, VCC, GND)
Dimensions

43mm x 22mm
