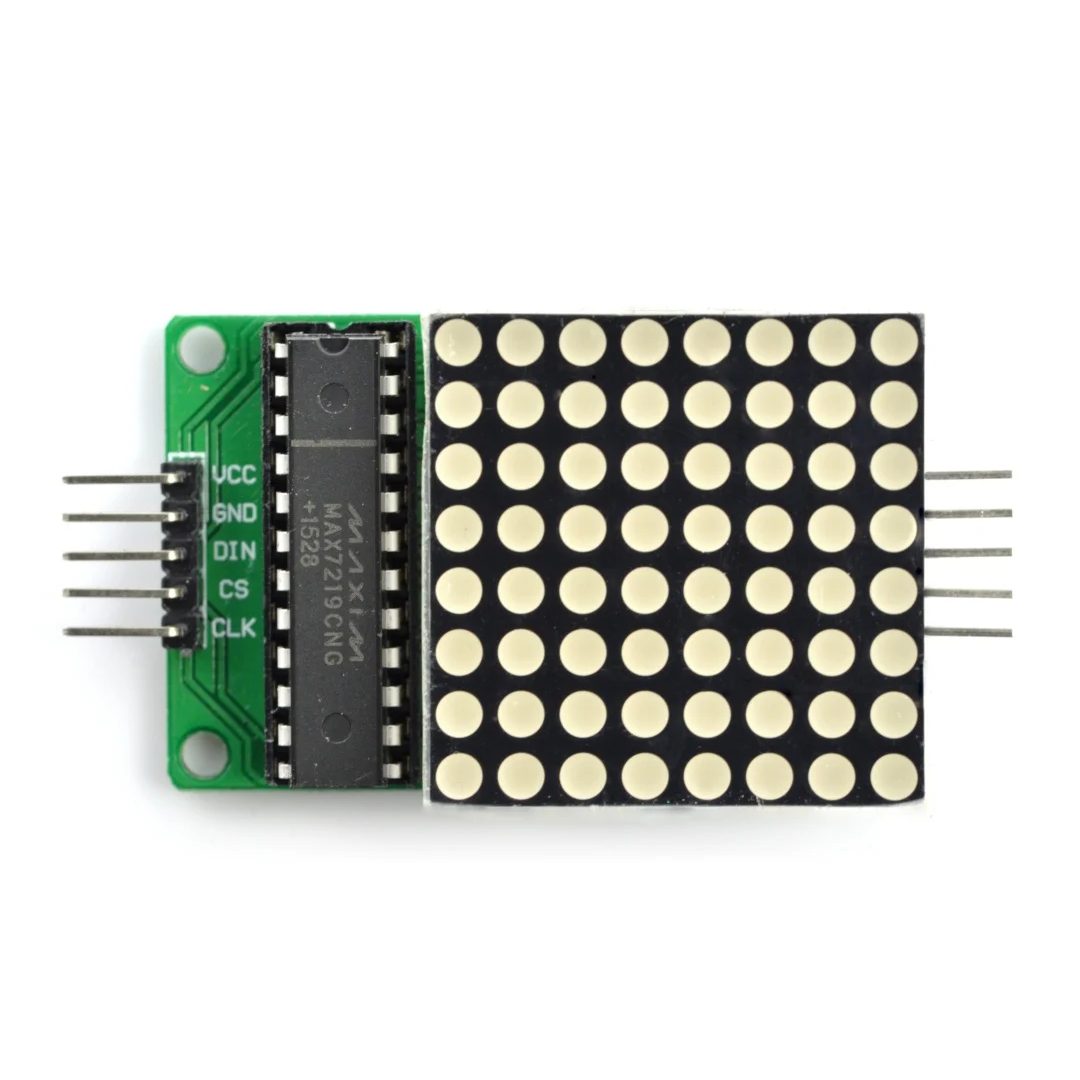

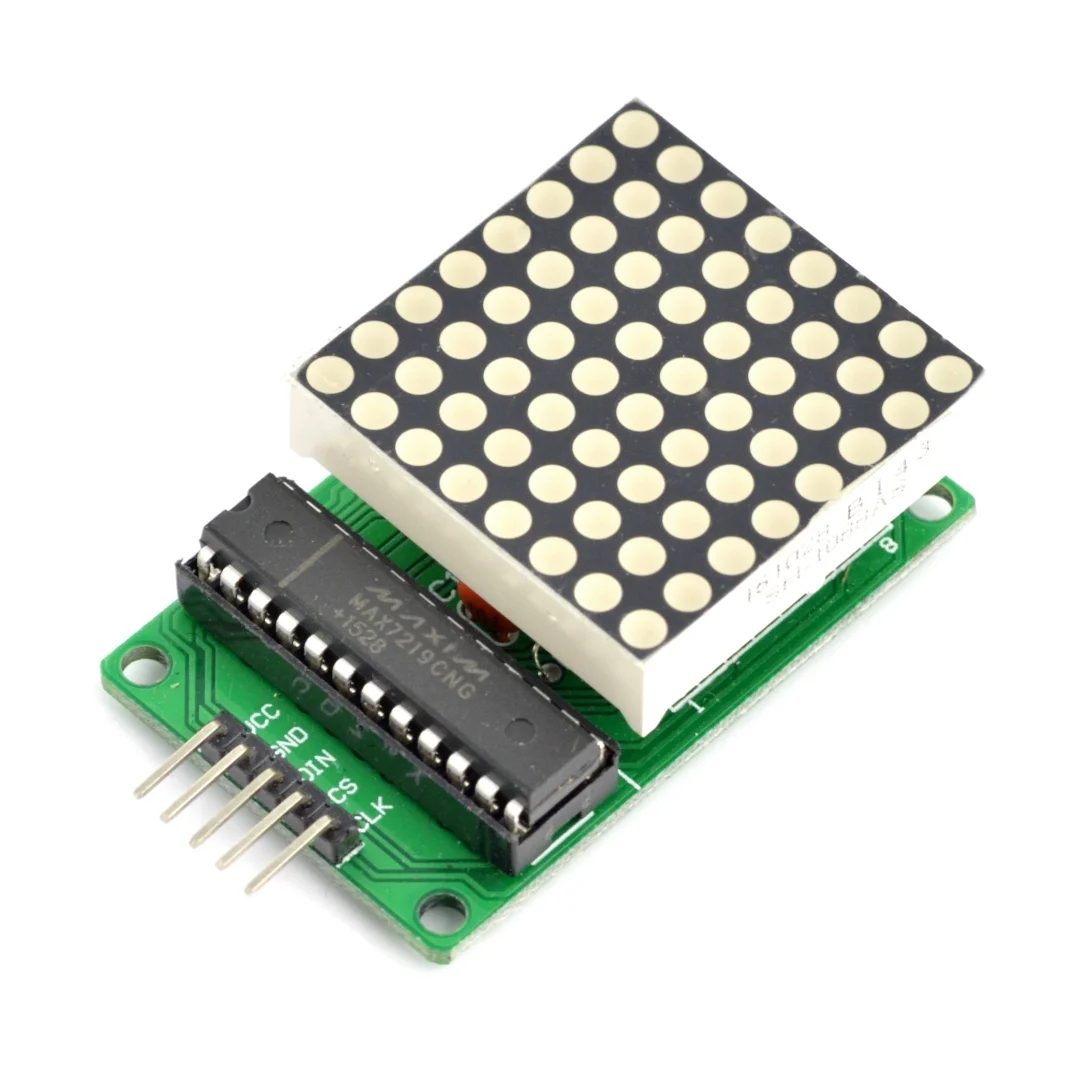

The MAX7219 8×8 Dot Matrix LED Display Module is a compact SPI-driven display board built around the MAX7219 LED driver IC, giving microcontrollers an easy way to control a full 8×8 grid of LEDs. It handles multiplexing, current limiting, and brightness control on-chip, so only a few control lines are needed from the host.
Key features:
- MAX7219 Driver IC: Handles all LED multiplexing and current limiting internally, driving up to 64 LEDs with just a few control pins.
- Cascadable Design: Multiple modules can be chained together via the DIN/DOUT pins to build larger scrolling displays.
- SPI Interface: Communicates over a simple 3-wire SPI-style protocol (DIN, CLK, CS) compatible with Arduino and other microcontrollers.
- Adjustable Brightness: Onboard digital brightness control lets you dim or brighten the display in software without extra components.
- Compact Footprint: Small 32mm x 32mm PCB fits easily into breadboards, enclosures, and portable project builds.
- Low Pin Count: Frees up microcontroller I/O compared to driving 64 individual LEDs directly.
This module is ideal for scrolling text displays, simple games, clocks, and any project that needs a bright, low-cost dot-matrix readout.
