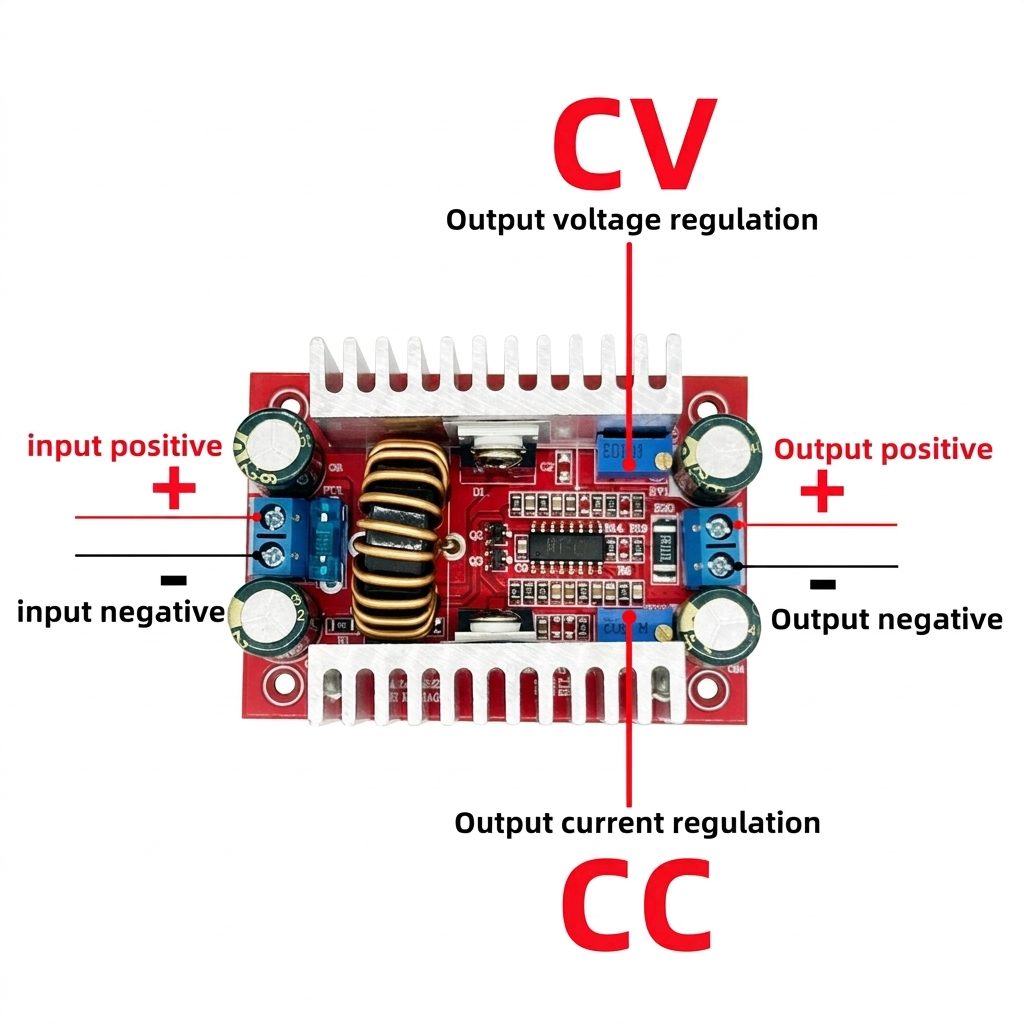

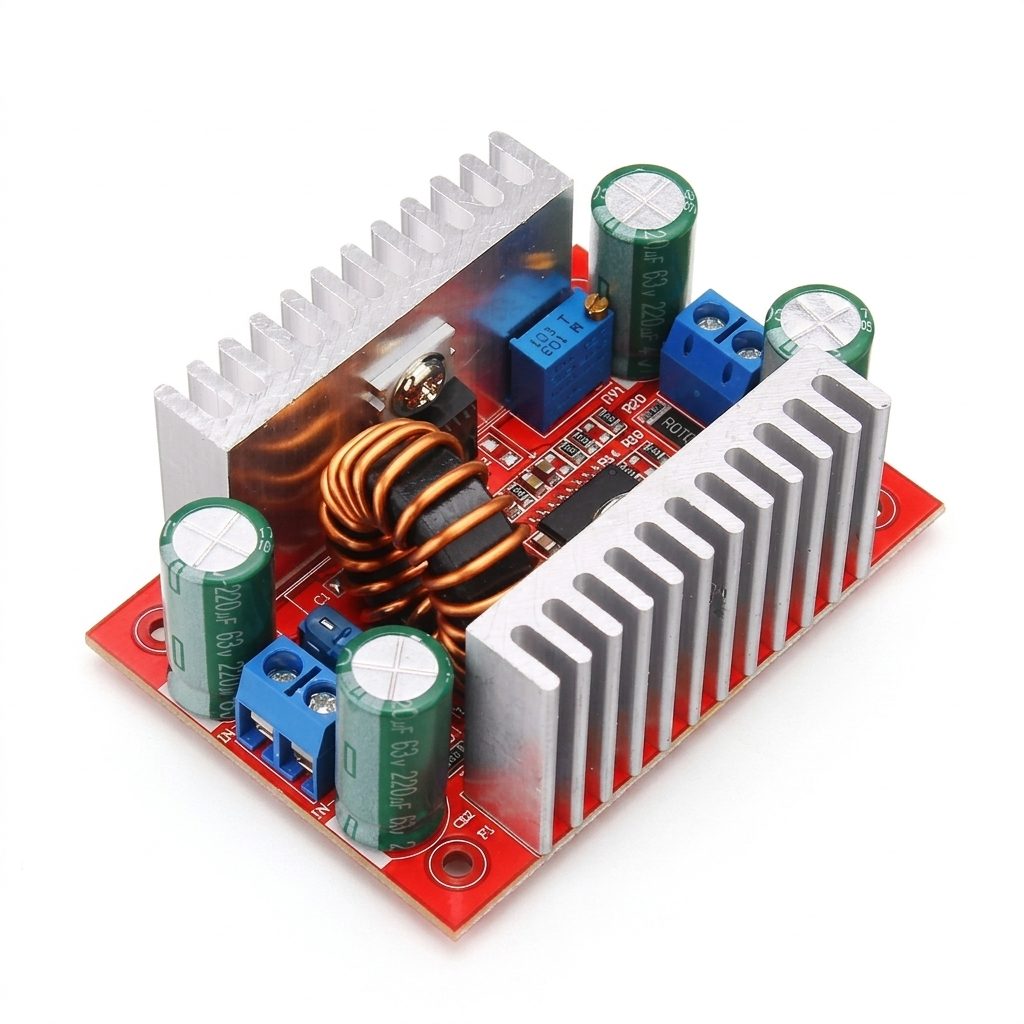

DC-DC Step-Up Boost Converter Module 12A 400W

The DC-DC Step-Up Boost Converter Module 12A 400W is a high-power voltage regulator that boosts a lower DC input to a higher, adjustable output, delivering up to 400 watts continuously. A heavy-duty inductor and finned aluminum heatsink make it suitable for demanding applications like battery banks, solar systems, and motor power supplies.

Key features:

• Wide Input Range: Accepts 8.5V to 50V DC input from batteries, solar panels, or other low-voltage sources.
• Adjustable Output: Onboard potentiometer sets the output anywhere from 10V to 60V to match the load.
• High Current Capacity: Delivers up to 12A of continuous output current for demanding loads.
• High Power Rating: Rated for up to 400W of continuous power conversion.
• High Efficiency: Reaches up to 96% conversion efficiency, minimizing wasted heat.
• Robust Cooling: Large aluminum heatsink keeps the module running cool under sustained heavy loads.

Ideal for boosting battery or solar voltage to power amplifiers, LED lighting arrays, motor controllers, and other high-current voltage step-up needs.
