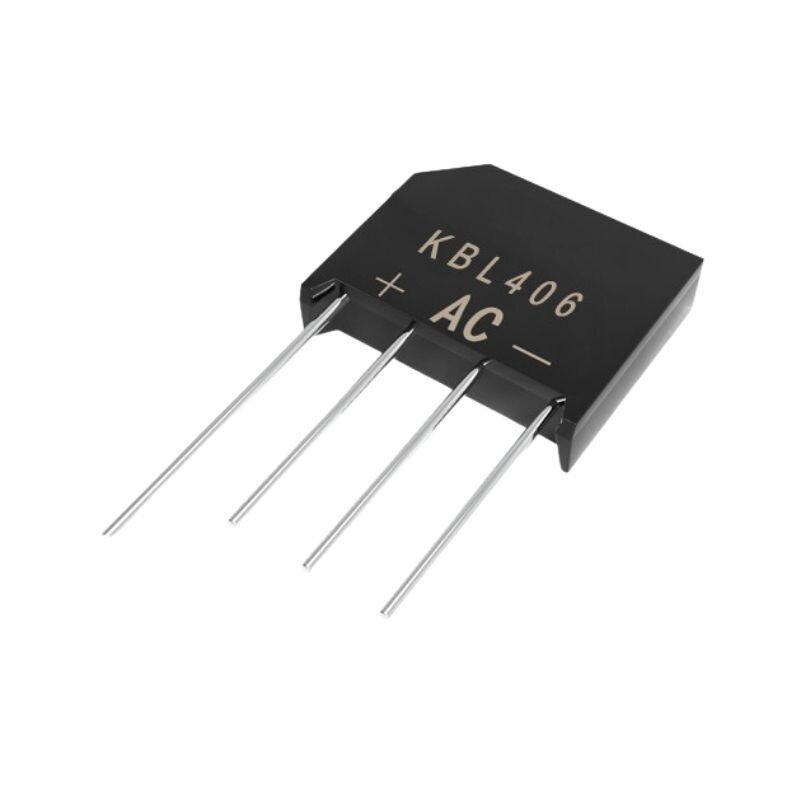

The KBL406 Bridge Rectifier is a silicon semiconductor component designed to convert alternating current (AC) into direct current (DC) through full-wave rectification. With a maximum repetitive peak reverse voltage of 600V and an average rectified output current rating of 4A, it is suitable for a variety of power conversion applications.
Its compact KBL package features four through-hole terminals for AC input and positive and negative DC output. The design supports convenient PCB installation and reliable operation in power supplies, battery chargers, industrial controls, and general-purpose electronic circuits.
Specifications:
– Part Number: KBL406
– Component Type: Single-Phase Bridge Rectifier
– Maximum Repetitive Peak Reverse Voltage: 600V
– Maximum RMS Bridge Input Voltage: 420V
– Average Rectified Output Current: 4A
– Peak Forward Surge Current: 200A
– Forward Voltage Drop: Approximately 1.1V at 4A
– Number of Terminals: 4
– Package: KBL
– Mounting Type: Through Hole (THT)
– Operating Junction Temperature: −55°C to +150°C
Applications:
– AC-to-DC power supplies
– Battery chargers and adapters
– Industrial control equipment
– Electronic power conversion
– General-purpose electrical circuits
