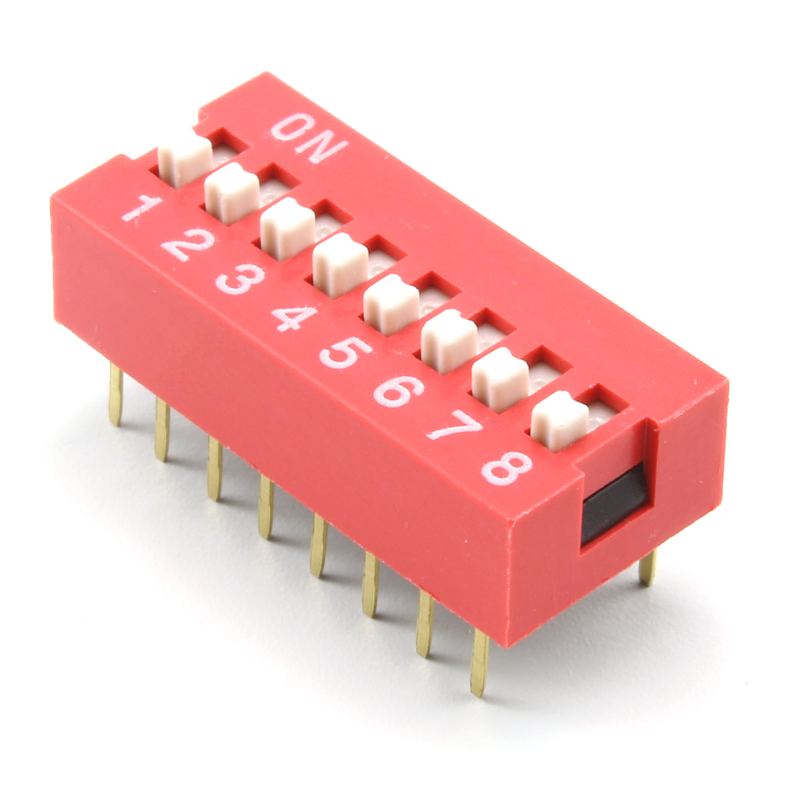

8-Position Slide DIP Switch Module (2.54mm, Red)

The 8-Position Slide DIP Switch Module is a compact red 2.54mm-pitch switch array that combines eight independent SPST contacts in a single 16-pin package. Each slider locks ON or OFF individually, giving a permanent, tool-free way to set addresses, modes, or calibration options directly on a PCB or breadboard.

Key features:

• Eight Independent Switches: Each of the 8 positions toggles its own circuit path, enough for a full byte of binary configuration.
• Standard 2.54mm Pitch: 16 through-hole pins match standard breadboard, perfboard, and DIP socket spacing.
• Clear ON/OFF Markings: A printed “ON” legend and numbered positions 1-8 make the current setting easy to read at a glance.
• Positive Slide Action: Firm, tactile sliders hold their position reliably during handling and vibration.
• Low-Voltage Signal Rated: Designed for logic-level switching in microcontroller, sensor, and hobby electronics circuits.

Eight switches in one compact block make it a space-efficient way to set device addresses or option bytes on Arduino, STM32, and other microcontroller projects.
