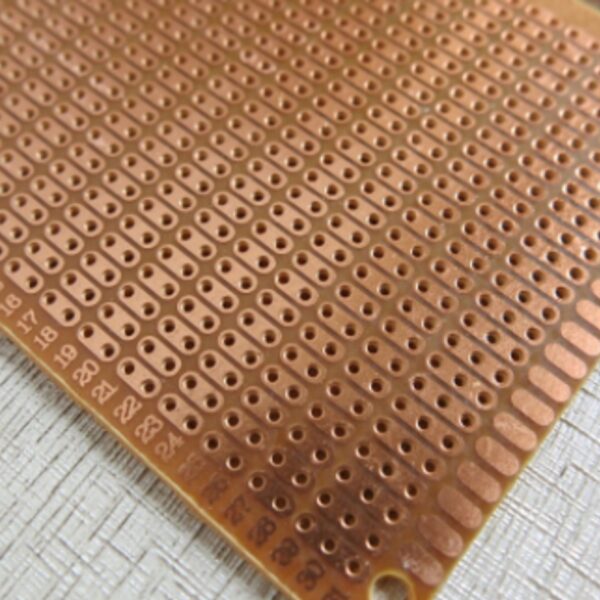

PCB Prototype Board FR4 10x15cm (Copper Strip Lines)
PCB Prototype Board FR4 10x15cm (Copper Strip Lines) 25,00 EGP
-10%
1689507450690 01 2500x2500 1
1689507707527 01 2500x2500 1
Click to enlarge

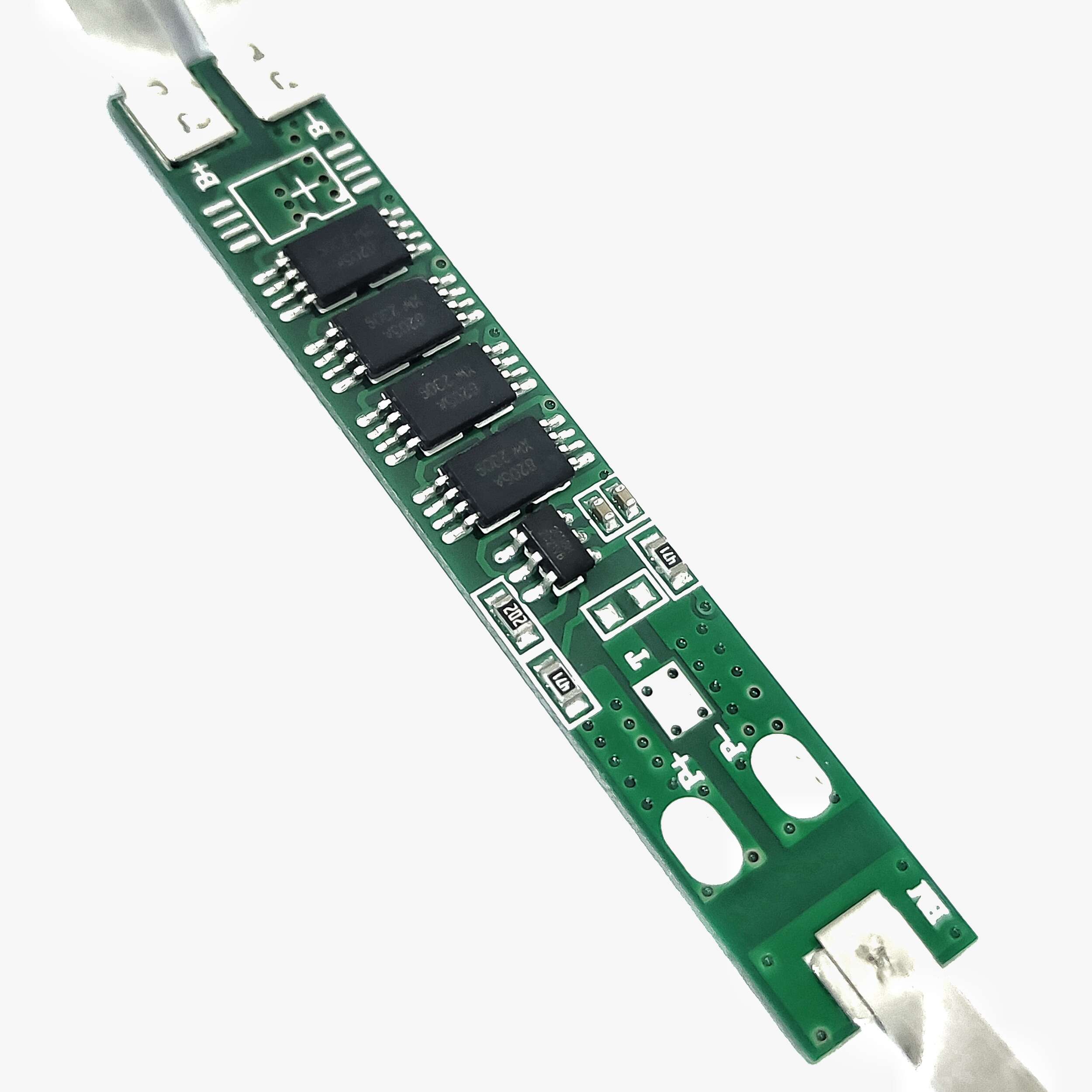

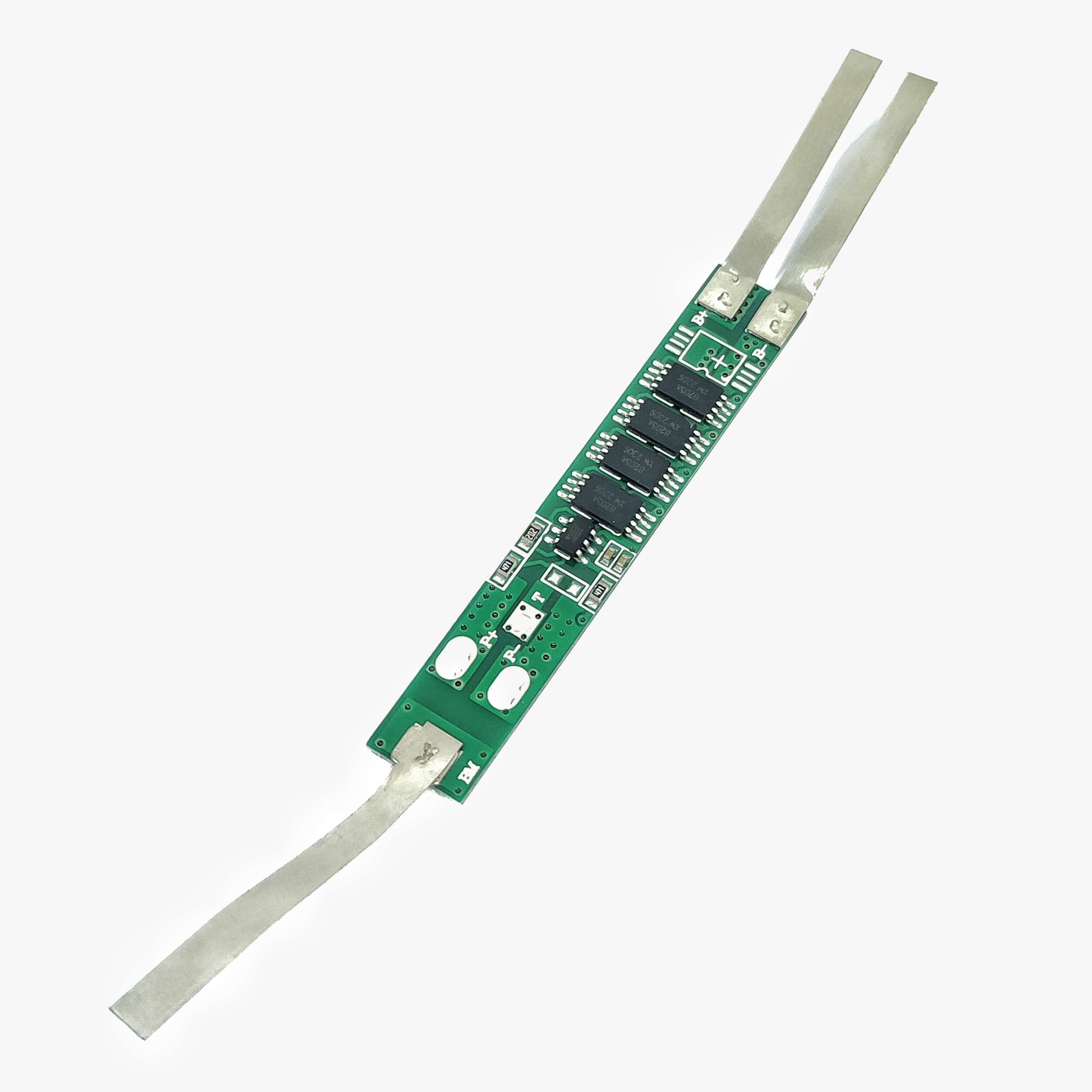

2S 7.4V 8A Lithium Battery BMS Protection Module (Balanced)

0 reviews
SKU: 4557096

Original price was: 50,00 EGP.Current price is: 45,00 EGP.

Out of stock

Out of stock

Compare
Add to wishlist
9 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • Courier delivery

Our courier will deliver to the specified address

Alexandria

<24 hours

Governorates

2-3 Days

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • 14-Day returns
More details

Payment Methods:

The 2S 7.4V 8A Lithium Battery BMS Protection Module is a compact balanced protection circuit designed to safeguard 2-cell (2S) lithium-ion or Li-Po battery packs during charging and discharging. It watches each cell individually and cuts the circuit the instant a dangerous voltage or current condition is detected, keeping the pack safe and balanced.

Key features:

  • Cell Balancing: Actively balances the two series cells during charging to keep them at equal voltage and extend pack life.
  • Overcharge Protection: Cuts off charging when any cell reaches approximately 4.25V to prevent damage.
  • Over-Discharge Protection: Disconnects the load when cell voltage drops too low, protecting battery longevity.
  • Overcurrent & Short-Circuit Protection: Automatically shuts down under excessive current draw or a short circuit.
  • Compact Design: Small footprint fits easily inside battery packs, power banks, and DIY battery builds.

It is a popular choice for robotics, RC packs, e-bikes, and other projects built around 2S lithium battery packs that need reliable, hands-off protection.

Add a review
You must be logged in to post a review Log In
0.0
Based on 0 reviews
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
0 of 0 reviews

Sorry, no reviews match your current selections

Specification

Technical Specification

Cell Configuration

2S (2 Cells in Series)
Nominal Voltage

7.4V
Max Continuous Current

8A
Overcharge Protection

4.25V ±0.05V per cell
Over-discharge Protection

2.5V ±0.1V per cell
Balance Function

Yes (Balanced Version)
Operating Temperature

-40°C to +85°C
